Advantenna-SP11 is a compact RFID UHF antenna with a very high gain, circular polarization, and radiation pattern characterized by a wide beam in all directions in one hemisphere.

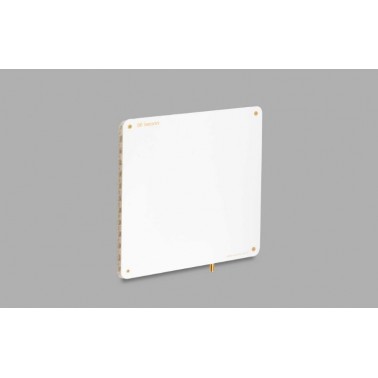

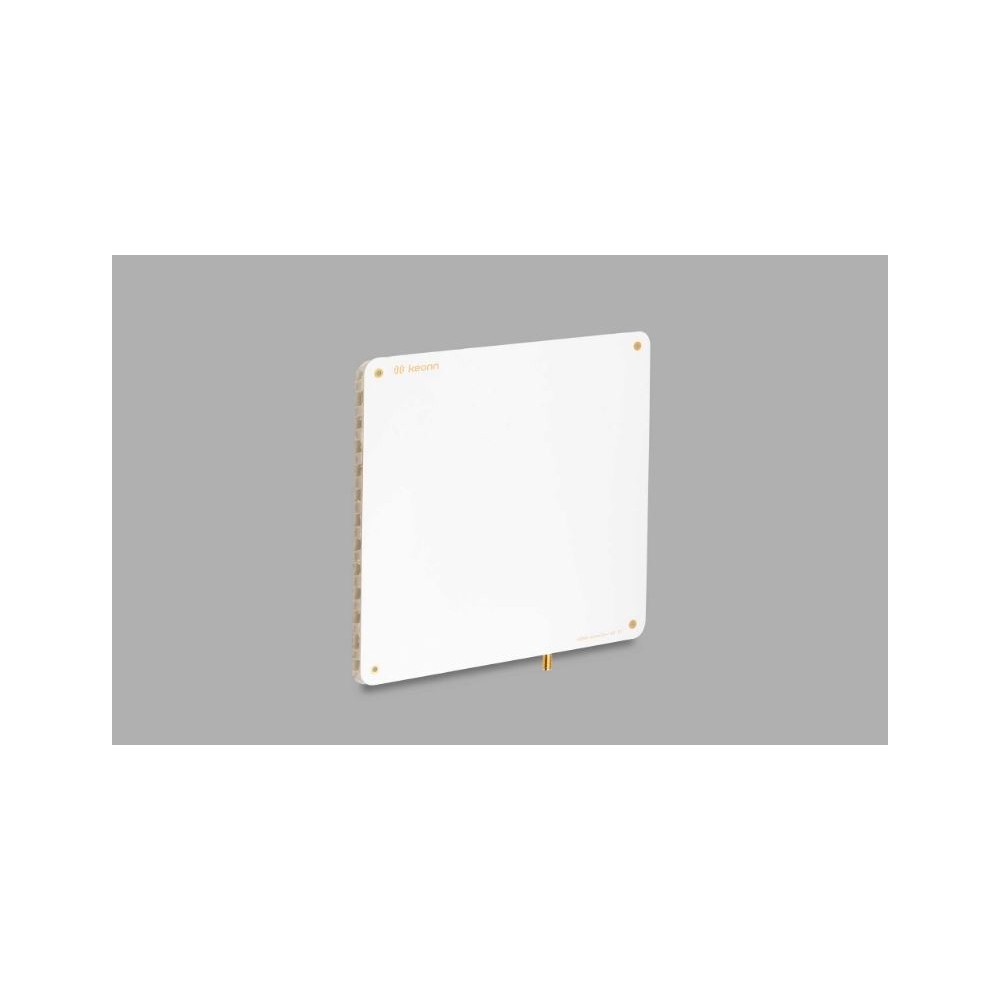

RFID Antenna Advantenna-SP11
MODELO: ADAN-SP11EU-PRMSMA-1-100
Advantenna-SP11 is a compact RFID UHF antenna with a very high gain, circular polarization, and radiation pattern characterized by a wide beam in all directions in one hemisphere.
The Advantenna-SP11's combination of high gain, light weight, slim form factor, and compact size (compared to other high gain antennas available on the market) make this antenna ideal for many RFID applications such as RFID gateways, RFID tunnels, enabled for RFID drones, smart panels and smart tables or other surfaces.
ADAN-SP11EU-PRMSMA-1-100
Data sheet
- Operating Frequency
- 865 - 868 (ETSI) / 902 - 928 (FCC)
- Protection Class
- IP 60
- Reading Range
- Up to 10 m
- Operating Temperature
- -20°C to +60°C
- Polarization
- Circular
- Dimensions
- 207 x 207 x 11.6 mm // 8.1 x 8.1 x 0.5 inches
- Weight
- 195 g
- Gain
- EU version: 8.0 dBiC / US version:7.8 dBiC
- Beamwidth
- 70° / 70°
- Other features
- Connector SMA
