The Keonn Advantenna-p12 antenna is a compact 2-element RFH UHF patch antenna with circular polarization and a radiation pattern characterized by a beam width of 60 ° in the longest plane and 90 ° in the other plane.

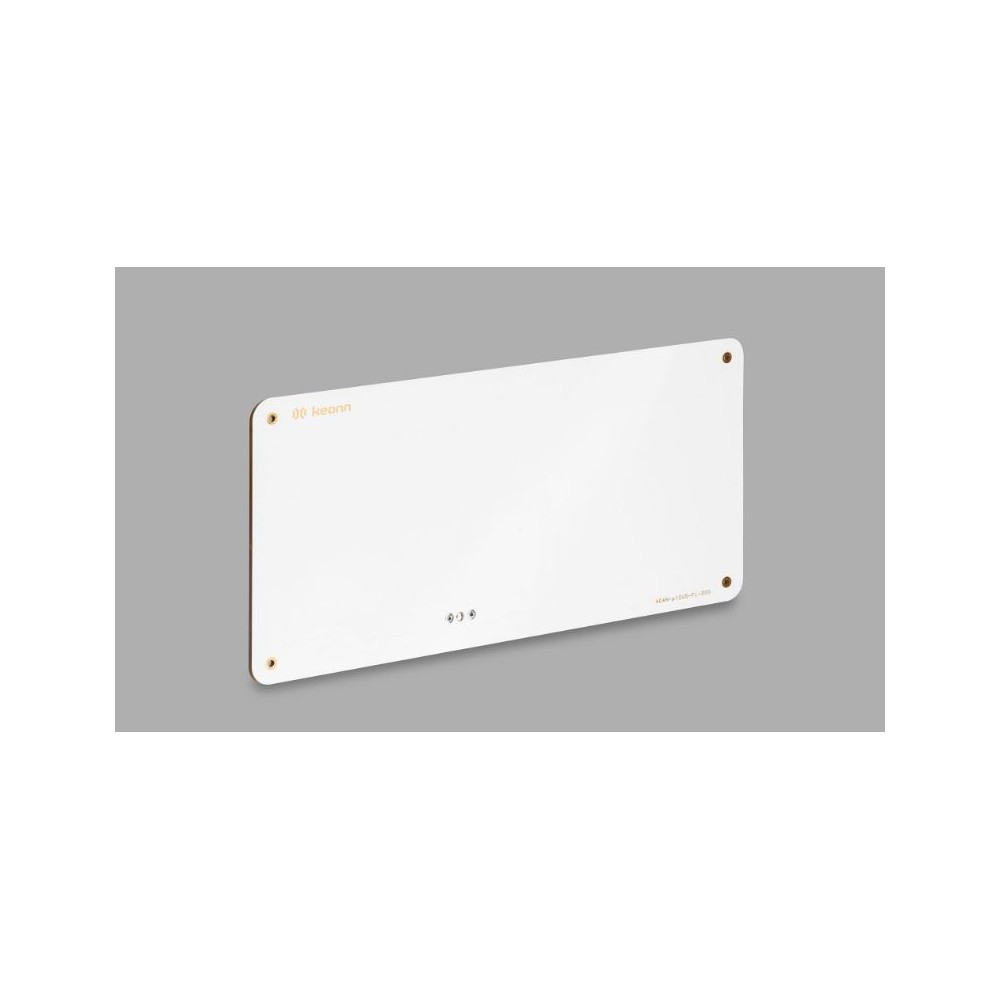

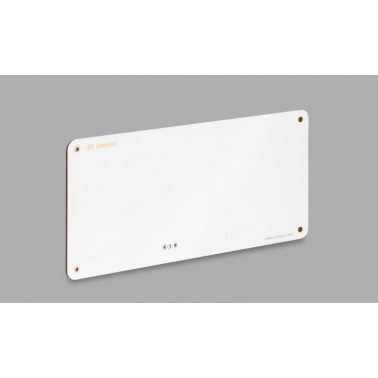

KEONN Advantenna-p12 RFID Antenna
MODELO: ADAN-p12EU-ELSMA-200
The Keonn Advantenna-p12 antenna is a compact 2-element RFH UHF patch antenna with circular polarization and a radiation pattern characterized by a beam width of 60 ° in the longest plane and 90 ° in the other plane.
The Keonn Advantenna-p12 antenna is a compact 2-element RFH UHF patch antenna with circular polarization and a radiation pattern characterized by a beam width of 60 ° in the longest plane and 90 ° in the other plane.
The Keonn Advantenna-p12 antenna is very thin, allowing the antenna to be integrated into thin objects. This antenna is ideal for loss prevention systems in retail stores. It can be incorporated into electronic article surveillance (EAS) pedestals based on acoustic and magnetic technology, transforming these pedestals into hybrid systems that include two technologies simultaneously: acoustic-magnetic and RFID.
Advantenna-p12
Data sheet
- Operating Frequency
- 865 - 868 (ETSI) / 902 - 928 (FCC)
- Protection Class
- IP68
- Reading Range
- Up to 3.5 m
- Screen resolution
- -20°C to +80°C
- Polarization
- Circular
- Dimensions
- 277 x 137 x 3.3 mm // 10.8 x 5.4 x 0.13 in
- Weight
- 230g
- Gain
- EU version: 5.4 dBiC / US version: 5.6 dBiC
- Beamwidth
- 60° / 90°
- Other features
- Conector SMA o MCX
