The Impinj MatchBox antenna is a high quality and efficient product manufactured by the renowned brand Impinj. Its main feature is proximity reading, being ideal for those environments where a reading limited to a very small area is required, up to 5 cm of coverage.
This antenna is characterized by its discretion and its ability to monitor items inside closets or other small environments. Additionally, it provides short-range bi-directional coverage ensuring optimal performance anywhere in the world.

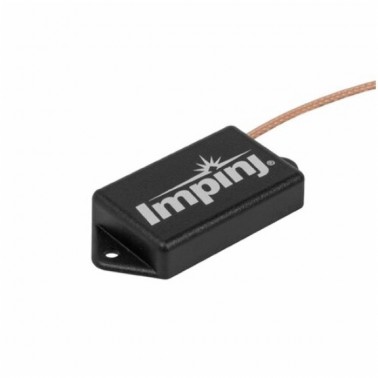

UHF RFID Impinj Antenna Matchbox
MODELO: IPJ-A0404-000
The Impinj MatchBox antenna is a high quality and efficient product manufactured by the renowned brand Impinj. Its main feature is proximity reading, being ideal for those environments where a reading limited to a very small area is required, up to 5 cm of coverage.
This antenna is characterized by its discretion and its ability to monitor items inside closets or other small environments. Additionally, it provides short-range bi-directional coverage ensuring optimal performance anywhere in the world.
La Impinj MatchBox es altamente recomendada para aquellos entornos donde se requiere un alto grado de precisión en la lectura, como en el sector de la logística, retail y almacenamiento. Gracias a su diseño compacto y su compatibilidad con la banda ancha, es capaz de integrarse en cualquier sistema de lectura RFID.
El rango de frecuencia es de 865 a 956 MHz, con una polarización lineal y una ganancia de -20 dBi en campo lejano. Puede soportar una potencia de entrada de hasta 30 dBm y un tamaño ajustado de 7.3 cm x 3.3 cm x 1,1 cm y un peso de 20 gramos. Cuenta con protección IP54 y una temperatura de funcionamiento óptimo garantizado por el fabricante de 0 °C – 40 °C (32 °F – 104 °F).
IPJ-A0404-000
Data sheet
- Operating Frequency
- 860 - 960 MHz
- Protection Class
- IP54
- Operating Temperature
- 0,0 ºC to 40,0 °C
- Polarization
- Linear
- Dimensions
- 73mm x 33mm x11mm
- Weight
- 0.02 kg
