The LORA version was developed in order to increase the range for near field tags, with which ranges up to 7 cm can be achieved. The range of applications of the antennas according to tag type is displayed in the tag association table.

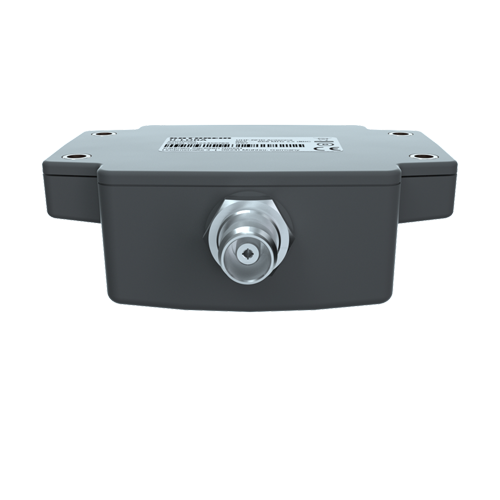

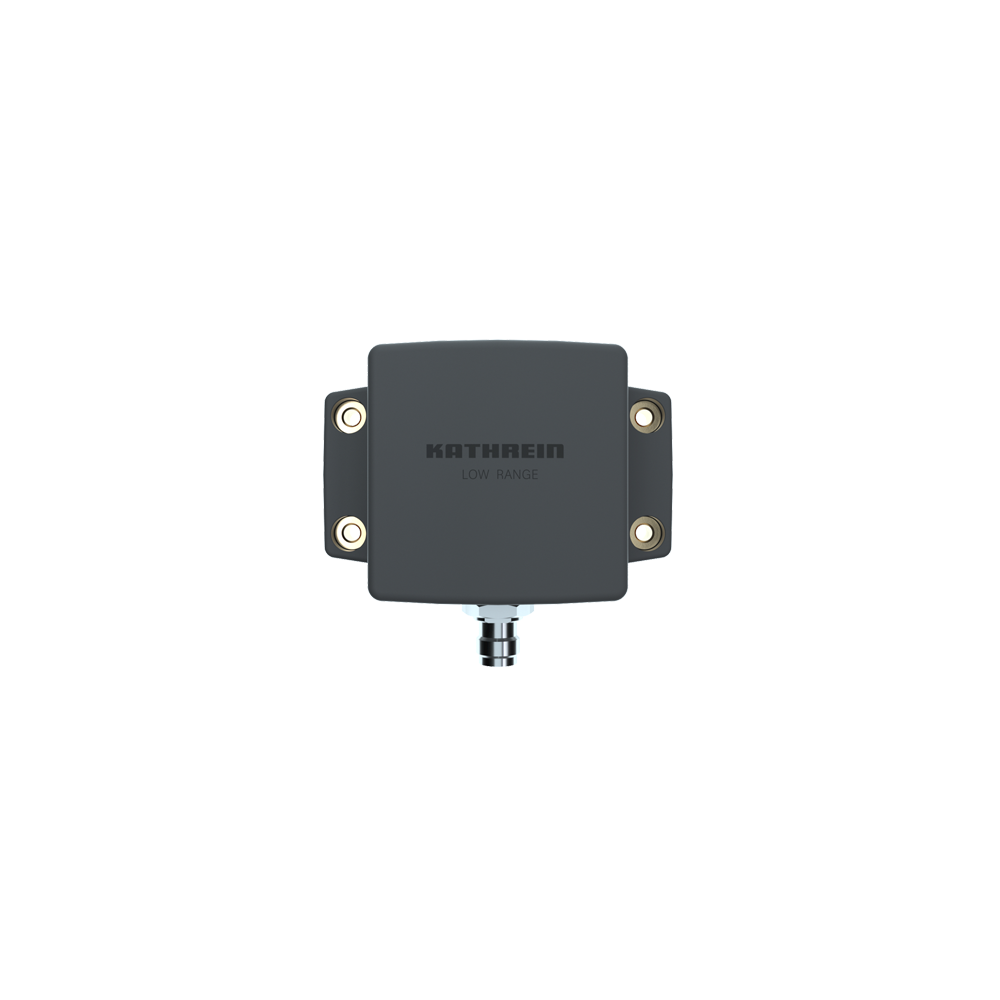

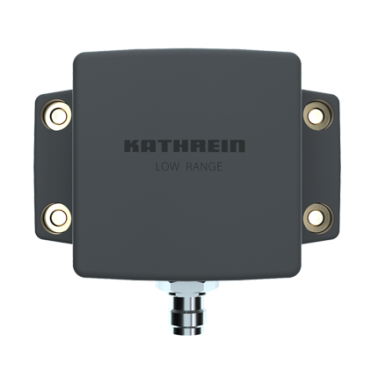

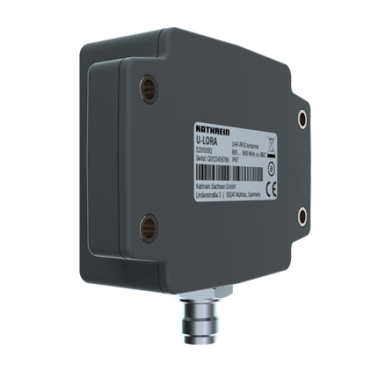

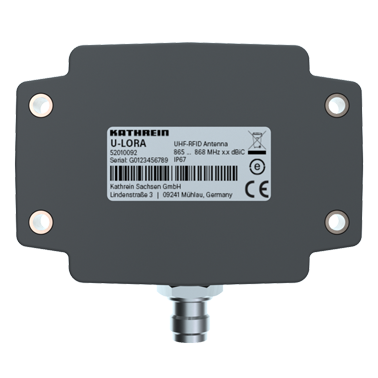

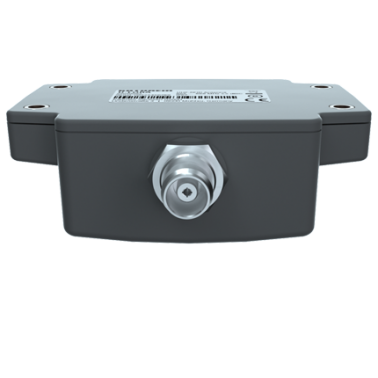

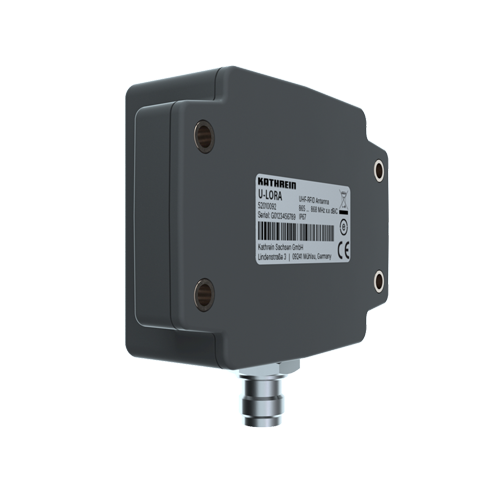

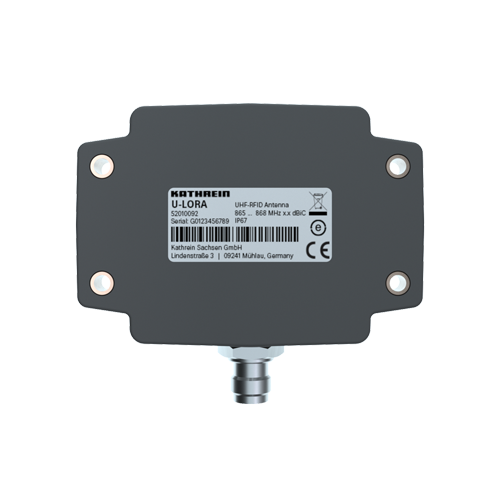

KATHREIN LORA Low Range Antenna
MODELO: 52010084
The LORA version was developed in order to increase the range for near field tags, with which ranges up to 7 cm can be achieved. The range of applications of the antennas according to tag type is displayed in the tag association table.
52010084
Data sheet
- Operating Frequency
- 865 - 868 (ETSI) / 902 - 928 (FCC)
- Protection Class
- IP67
- Reading Range
- 20 cm
- Interface
- TNC female
- Operating Temperature
- -20 to +55
- Dimensions
- 165 x 250 x 50 mm
- Weight
- 0.11 kg
- Gain
- -15 dBiC
