qLogHUMIDITY (RT0013) is a low cost, semi-passive NFC/RAIN RFID temperature and humidity logger that allows to monitor temperature and humidity sensitive products.

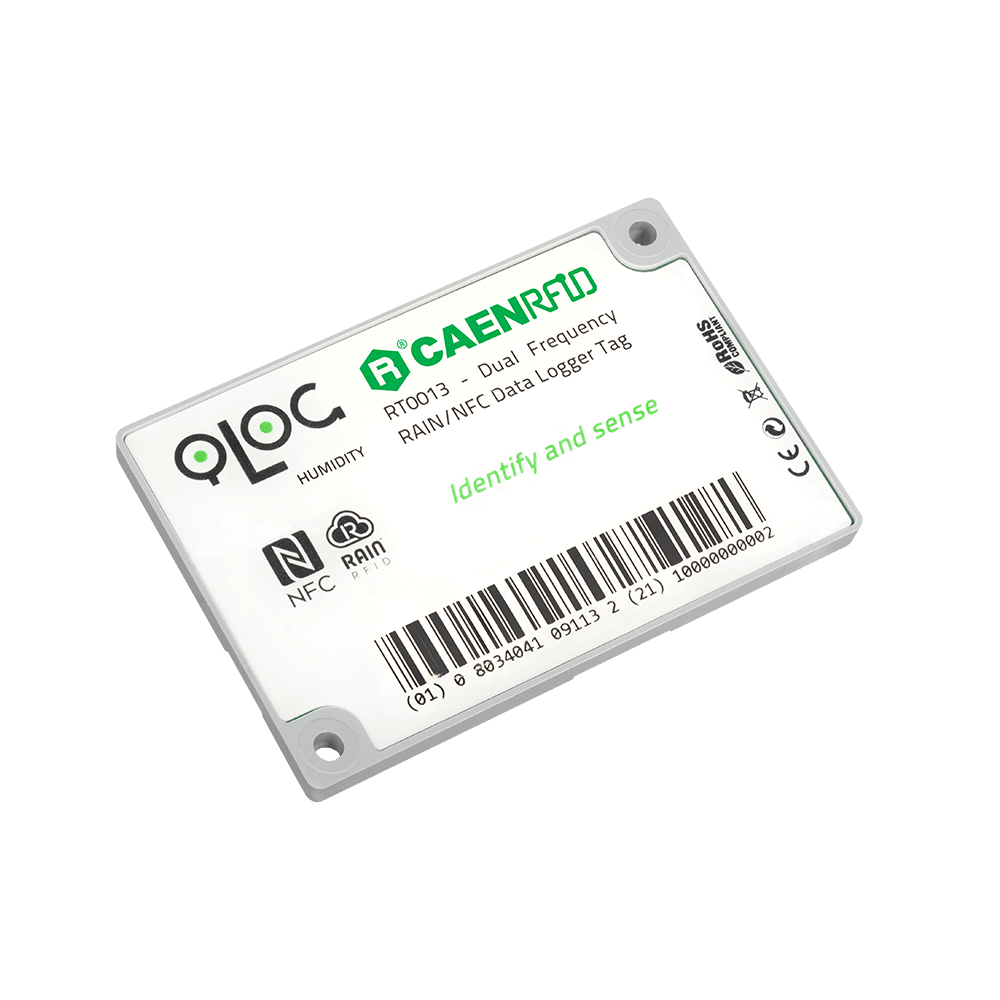

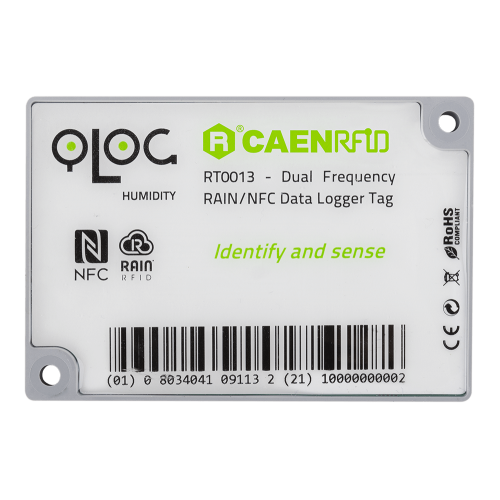

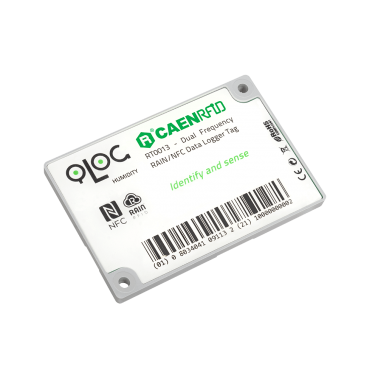

Tag CAEN RT0013 qLog
MODELO: RT0013
qLogHUMIDITY (RT0013) is a low cost, semi-passive NFC/RAIN RFID temperature and humidity logger that allows to monitor temperature and humidity sensitive products.
The combination of the high resolution sensor, the large memory size and the standard NFC/RAIN RFID interfaces permit to realize effective track and trace solutions for the cold.
The RAIN RFID interface is ideal for reading temperature data or alarms from distance allowing automated check-points on conveyors or through dock doors.
The NFC interface permits a very easy interaction with any NFC enabled smartphone allowing the consumer to check the good condition at home.
The user can define up to 16 temperature and humidity ranges with independent alarms for a very accurate control of the temperature and humidity.
The rugged enclosure and the compact size permit to use the logger in various applications and the passive radiofrequency behaviour does not prevent air shipments.
RT0013
Data sheet
- Operating Frequency
- 860/930 MHz and 13.56 MHz
- Housing
- ABS
- Protection Class
- IP68
- Reading Range
- NFC/HF: up to 5 cm // RAIN/UHF: up to 5 m
- Transponder Protocols
- EPC Class1 Gen2
- Operating Temperature
- -30 °C to +70 °C
- Dimensions
- 92 x 63 x 6.5 mm
- Weight
- 35 g
- Memory
- Up to 160 bits in EPC memory bank and up to 448 bits available for user
