OVERVIEW BELT RFID UHF TAG
AD Belt M730 inlay rfid tag is designed for global retail, logistics and supply-chain applications, offering excellent performance on difficult-to-tag or low detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments.

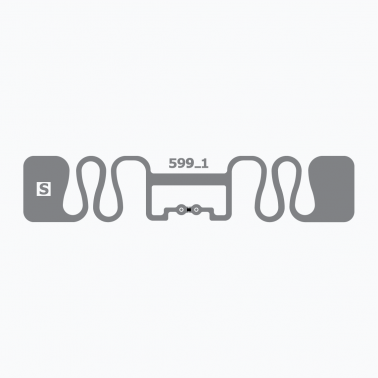

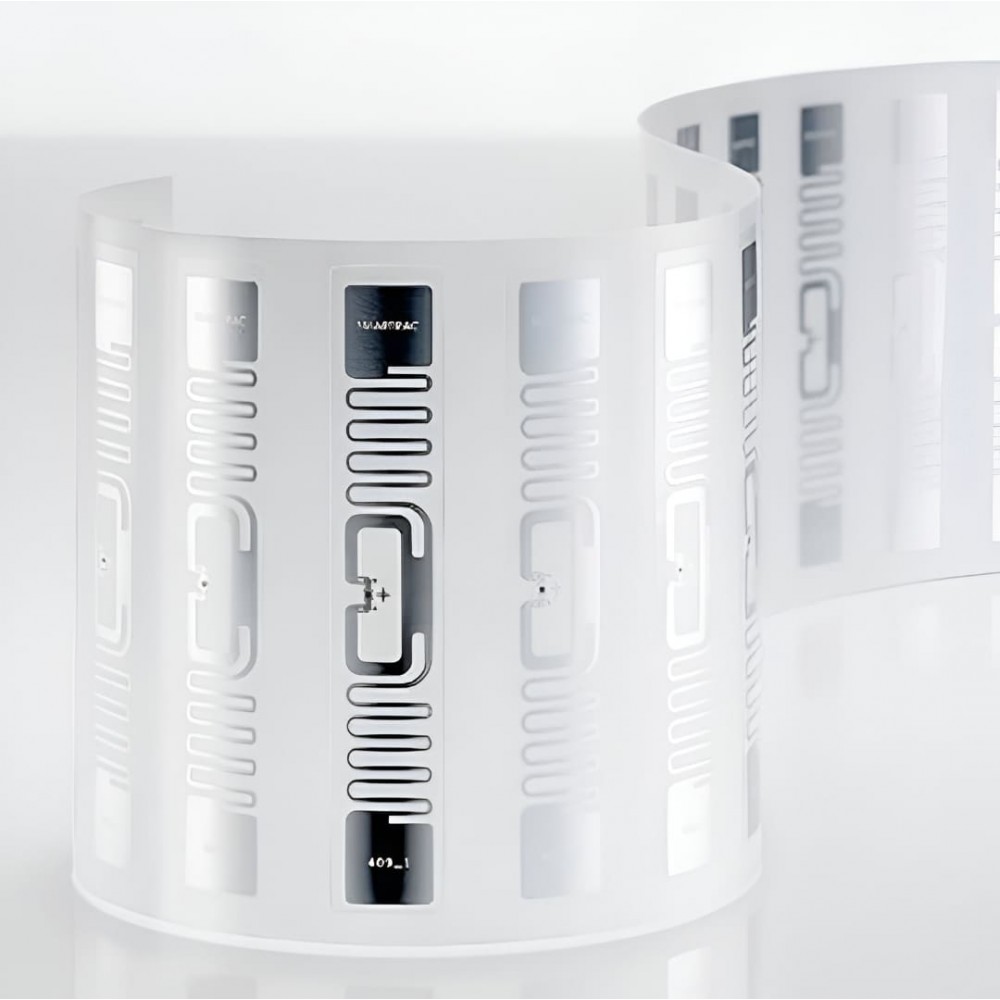

SMARTRAC Belt Wet Inlay M730 RFID UHF (5000 U)
MODELO: Belt M730 Wet Inlay
OVERVIEW BELT RFID UHF TAG
AD Belt M730 inlay rfid tag is designed for global retail, logistics and supply-chain applications, offering excellent performance on difficult-to-tag or low detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments.
DESCRIPTION BELT RFID UHF TAG
The AD Belt M730 UHF RFID tag delivers high performance on different materials and in challenging environments thanks to adaptive RF tuning and its enhanced features.
It offers improved read and write sensitivity, enabling very fast and accurate reading among a large number of tags, and includes a privacy mode that helps prevent losses and protects consumer privacy by making a tag invisible to RAIN readers.
The AD Belt M730 is listed in the Auburn University RFID Research Center (ARC) approved retail applications list.
The Impinj M730 RFID chip has 128-bit EPC memory. The IC complies with the GS1 global UHF Gen2v2 standard, standardized by ISO/IEC as 18000-63
Belt M730 Wet Inlay
Data sheet
- Operating Frequency
- 860 - 960 MHz
- Operating Temperature
- -40 °C to 85 °C / -40 °F to 185 °F
- Dimensions
- 70 x 14 mm / 2.76 x 0.55 in
- Memory
- EPC 128 bits
- Chip
- Impinj M730
