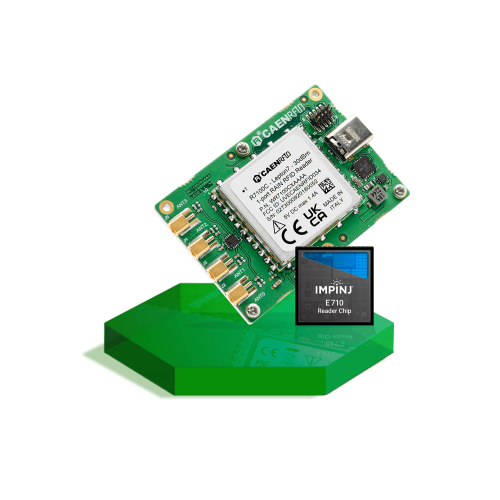

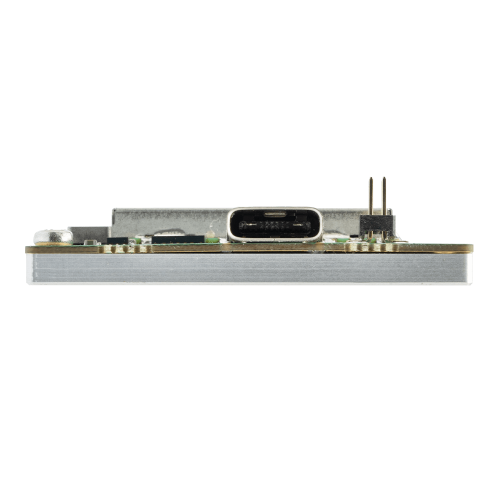

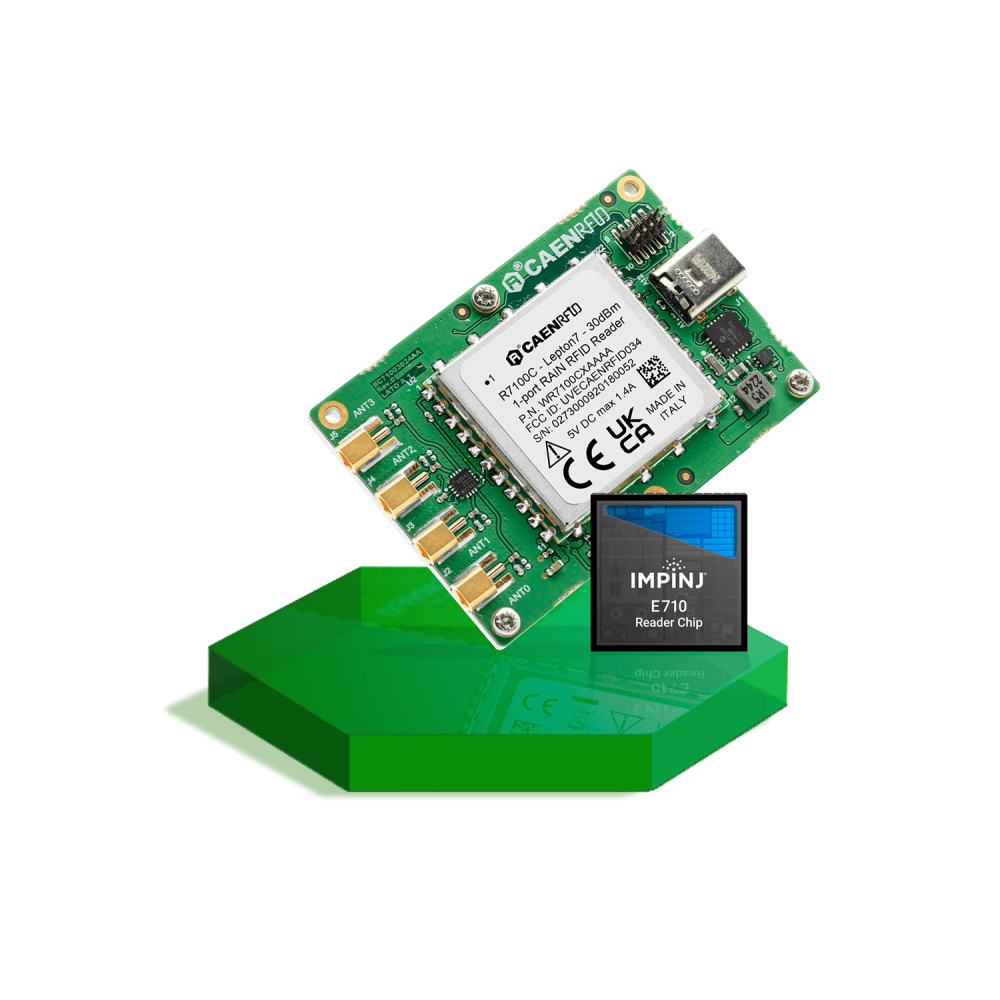

CAEN R7104C Lepton7 30dBm 4-Port   reader

CAEN R7104C Lepton7 30dBm 4-Port Reader


Ultra-compact 4-port reader for low-power, high-performance RAIN RFID applications.

Tax excluded
Please choose the suitable frequency for your region

Volume discounts

Quantity Unit price You Save
100 €238.00 €2,700.00
1000 €225.00 €40,000.00

info_outlineContact us for Distribution DISCOUNTS

In stock Envío en 24 - 48 horas

With programmable output power from 10 dBm to 30 dBm, the reader can detect tags at more than 5 m of distance (depending on antenna and tag dimensions).

Due to its low power consumption, the module is specifically designed to be easily integrated in battery powered devices.

The radio frequency core of the module is based on the Impinj E710 IC that permits to achieve fast reading speed and to be used in dense reader and dense tag environments for top-class rated performances.


Data sheet

Operating Frequency
865 - 868 (ETSI) / 902 - 928 (FCC)
Power Supply
3,2 ÷ 5,25 V CD
Transmit Power
10 mW to 1 W
Transponder Protocols
EPC Class1 Gen2
Operating Temperature
-20 °C a +70 °C
(L)60 x (W)42 x (H)8.1 mm3
34 g
