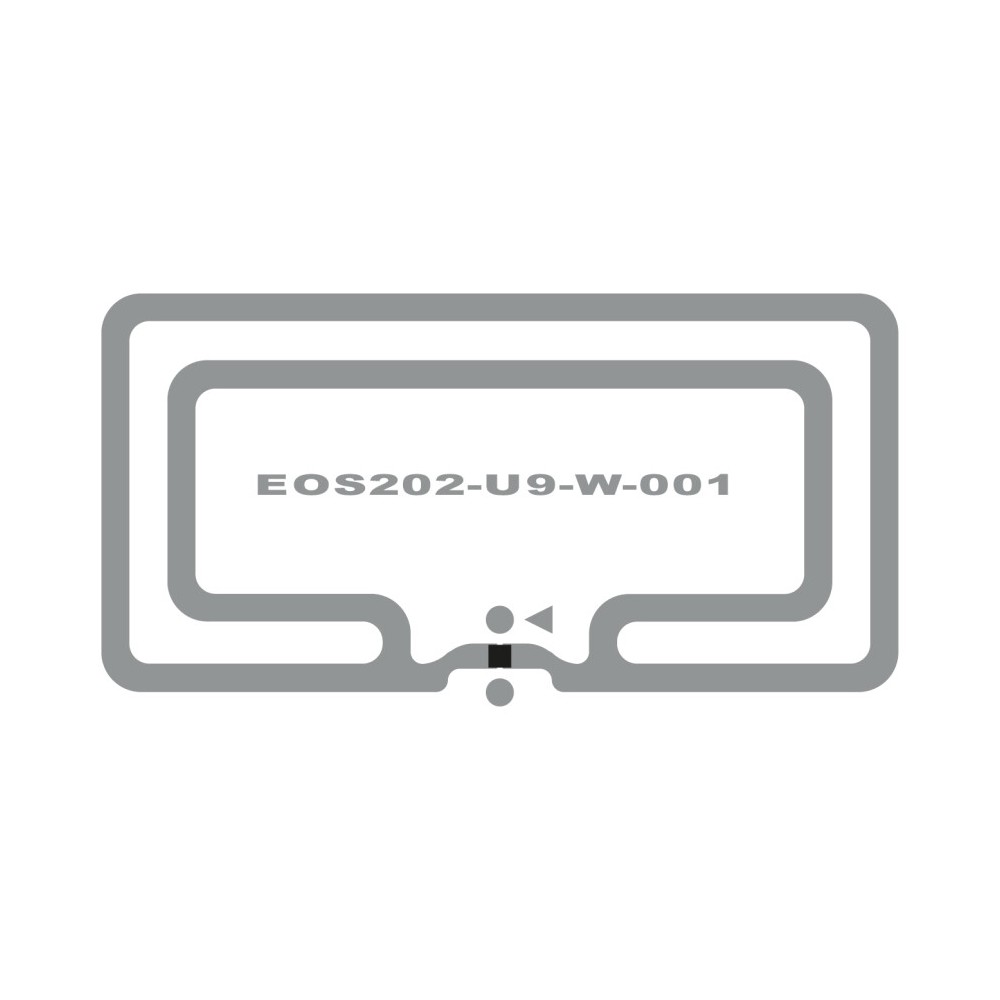

The EOS-202 U9 RAIN RFID inlay from Tageos is unique for its small size, measuring just 20x10 mm, with a slightly larger size of 22x12 mm when finished (wet inlay). Despite its compact dimensions, it delivers outstanding performance for healthcare and pharmaceutical products, fitting perfectly into the requirements of ARC category S.

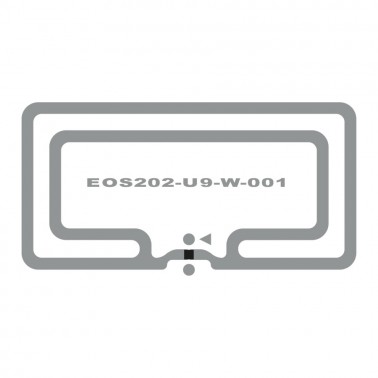

TAGEOS EOS-202 U9 Wet Inlay (22000 U)
MODELO: 2000000065
The EOS-202 U9 RAIN RFID inlay from Tageos is unique for its small size, measuring just 20x10 mm, with a slightly larger size of 22x12 mm when finished (wet inlay). Despite its compact dimensions, it delivers outstanding performance for healthcare and pharmaceutical products, fitting perfectly into the requirements of ARC category S.
This inlay is very reliable and can read accurately even when surrounded by many other RFID tags. It's designed for a wide range of medical items, including various types of syringes and vials made from glass or plastic. At the heart of the EOS-202 U9’s design is a very small, yet powerful, antenna that uses the latest technology from NXP, called UCODE 9 IC. This chip is compatible with global RFID standards (EPC Class 1 Gen 2 and ISO 18000-6c), and it includes features like auto-adjust technology for better performance, unique identifiers for branding, and a pre-serialized 96-bit EPC memory for easy tracking. This makes the EOS-202 U9 an excellent choice for managing healthcare items efficiently and effectively.
2000000065
Data sheet
- Operating Frequency
- 860 - 960 MHz
- Air Interface Protocol
- EPC Class1 Gen2
- Operating Temperature
- -40°C / +85°C
- Dimensions
- 22 x 12 mm
- Memory
- EPC 96 bits
- Chip
- NXP UCODE 9
