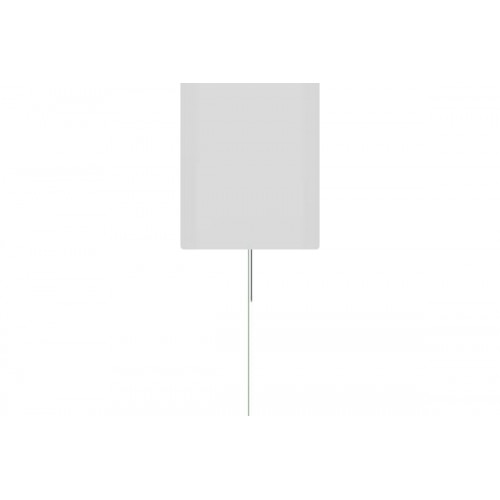

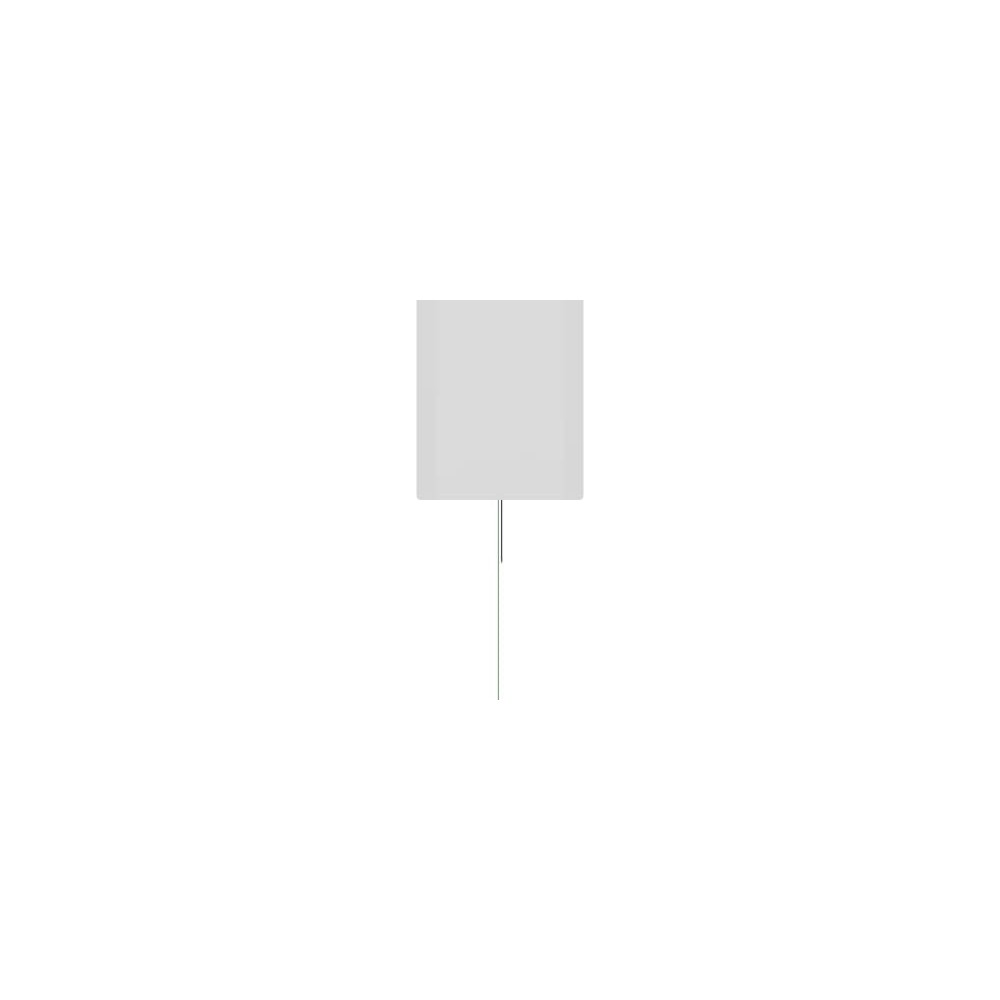

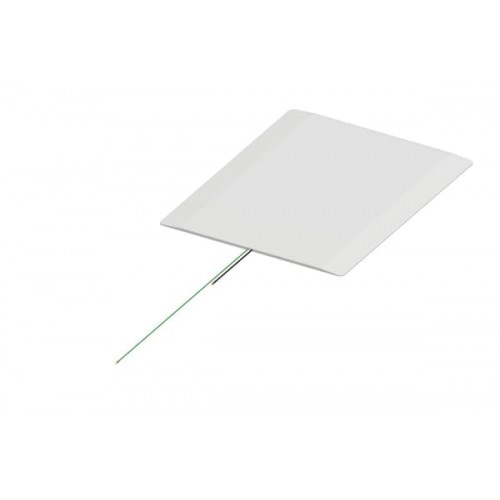

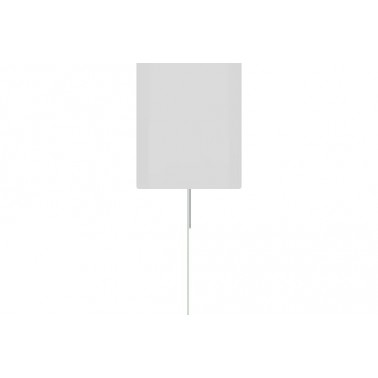

SlimLine A6011 circular-polarised flat panel
MODELO: A6011-70730
Part of the SlimLine range of airport antennas, the A6011 is a flat panel antenna array especially suited to conveyor belt-based UHF RFID applications.
The A6011 is designed for continuous 24x7 operation in environments where downtime is not an option.
At just 12 mm / 0.5 in. thick, and designed for quick and easy installation, the A6011 is the ideal choice for airport baggage handling systems, or any conveyor belt-based application.
The A6011 is now available in three dimensions:
- 1200 mm x 600 mm x 12 mm
- 1000 mm x 800 mm x 12 mm
- 800 mm x 800 mm x 12 mm
A6011-70730
Data sheet
- Operating Frequency
- 865 - 868 (ETSI) / 902 - 928 (FCC)
- Protection Class
- IP54
- Operating Temperature
- 0° to +50°C //-30° to +60°C
- Polarization
- Circular
- Dimensions
- A6011 (1200mm)1200 mm x 600 mm x 12 mm48 in. x 24 in. x 0.5 in. //A6011 (1000mm)1000 mm x 800 mm x 12 mm39 in. x 31 in. x 0.5 in. //A6011 (800mm)800 mm x 800 mm x 12 mm31 in. x 31 in. x 0.5 in.
- Weight
- A6011 (1200mm) 7 kg / A6011 (1000mm) 8.5 kg/ A6011 (800mm) 8.0 kg
- Gain
- A6011 (1200mm) 2 typical //A6011 (1000mm) 1.8 typical //A6011 (800mm) 1.8 typical
